Fuse & Fuse Holder

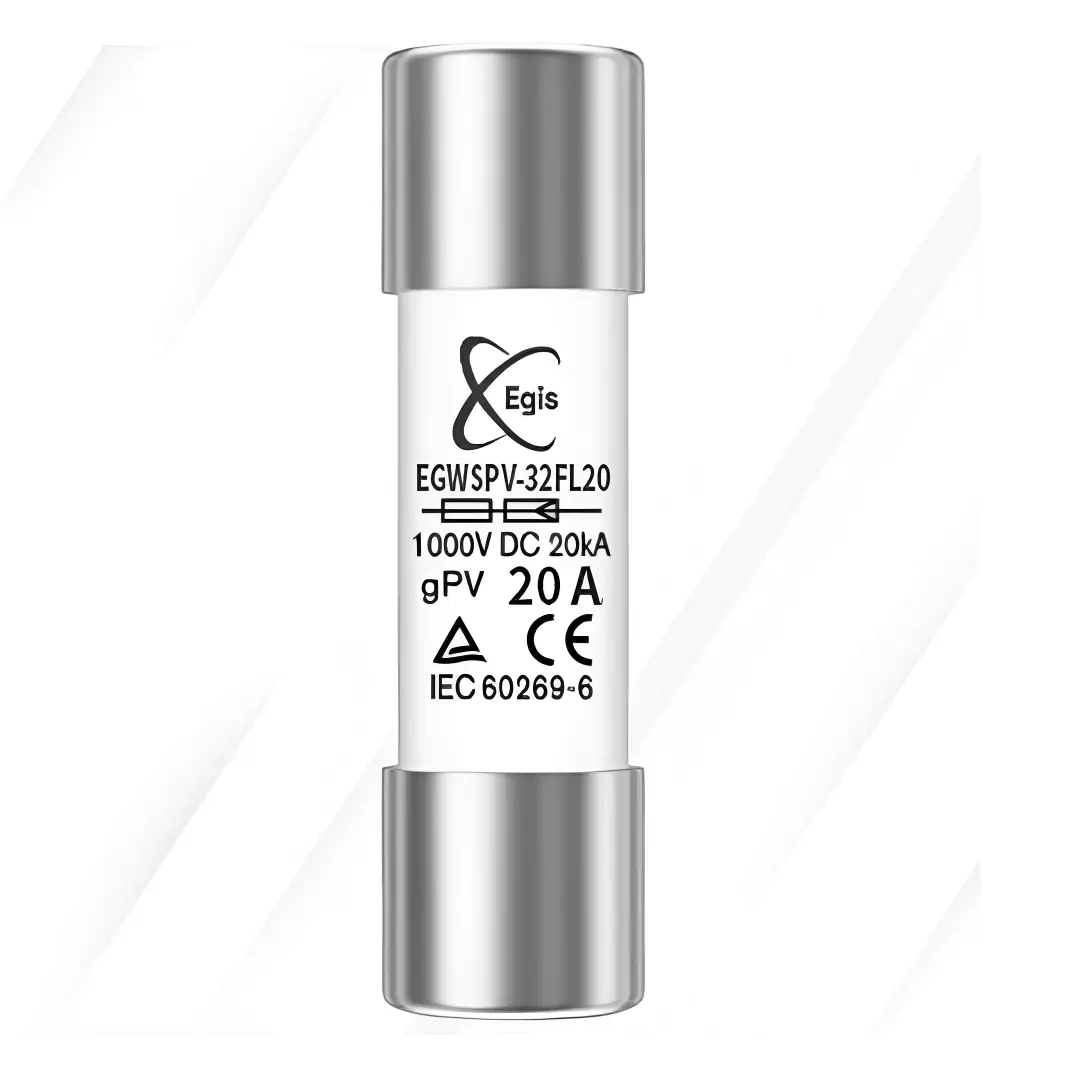

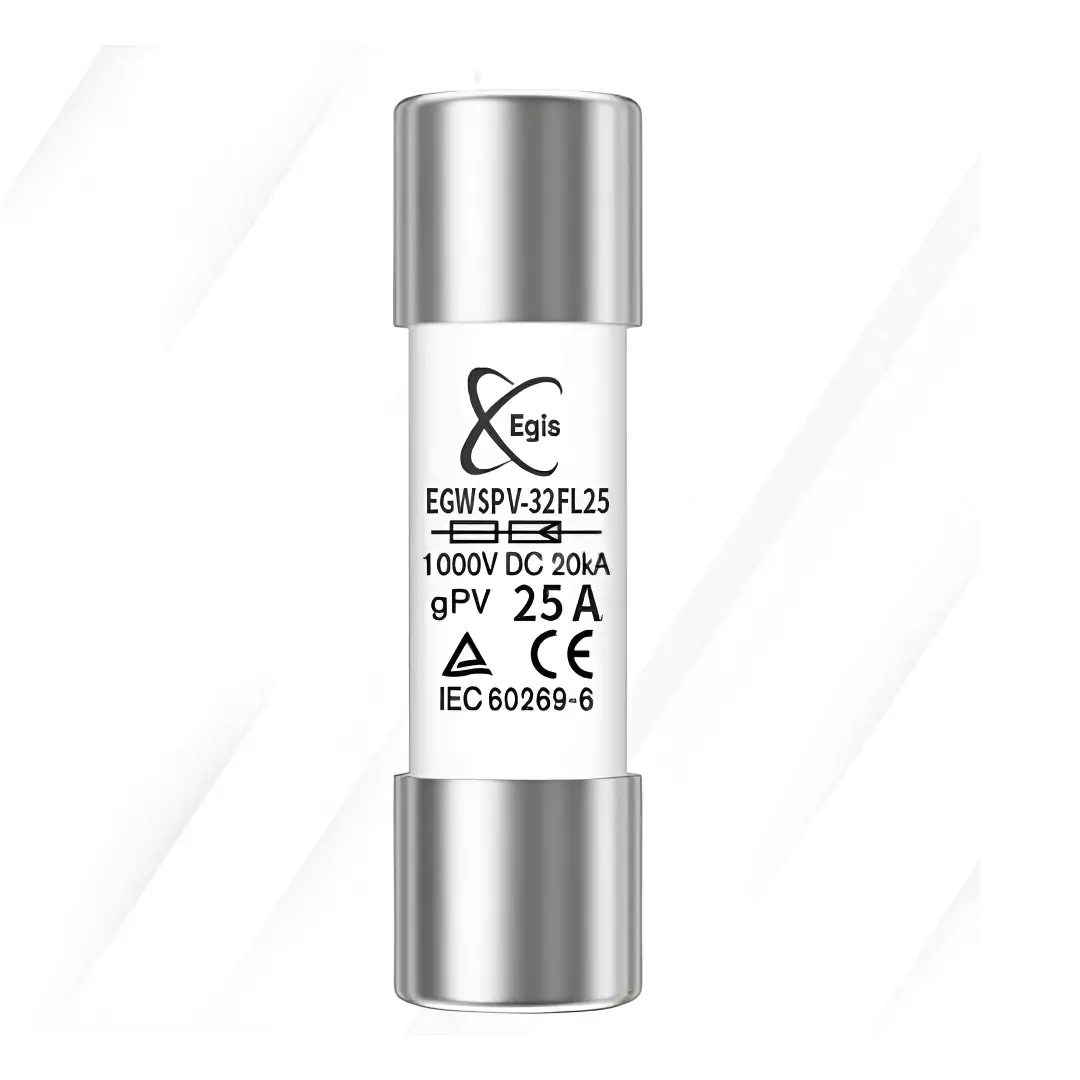

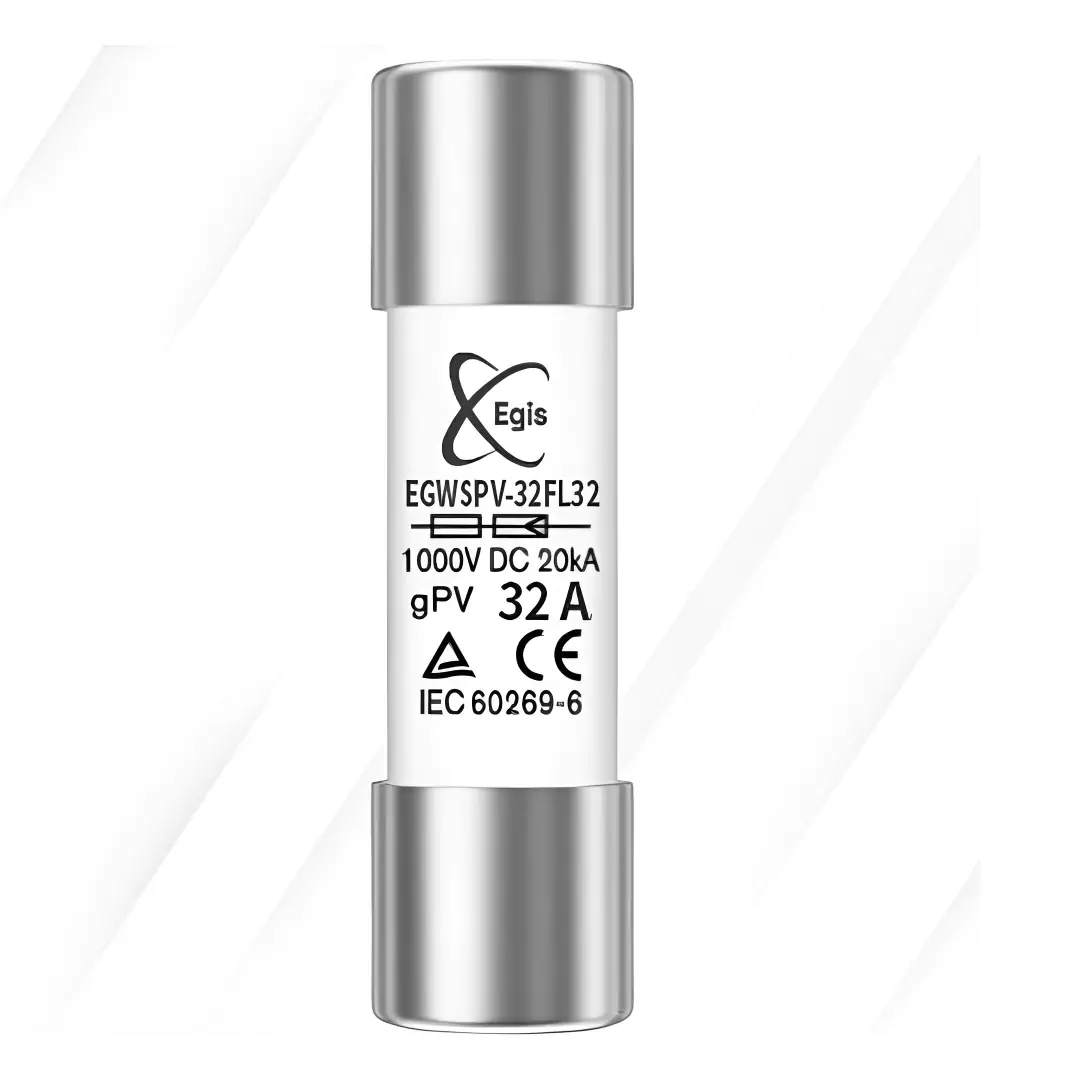

A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
- According to IEC60269-1
- Rated Current: 1-32A
- Rated Voltage: DC 1000V
- Rated Breaking Capacity: DC 20KA
- Operating Class gPV For Solar Prorection
- Photovoltaic system fuse accord with UL248-1 standard.
- Photovoltaic battery dc fuse designed to used for photovoltaic (PV) system.
- Main effect is to protect the solar panels. Solar panels points in effective condition is broken.
- Fault light cells break points at the same time, does not affect other normal work of light from the stack.
- Technical Data Rated coltage: DC 1000V Breaking capacity: 25KA Function level: PV.
| Pole | 1P |
|---|---|
| Rated Voltage Ue (V DC) | 1000 |
| Rated Current In (A) | 1,2,3,4,5,6,8,10,12,15,16,20,25,30,32 |
| Biggest Block Ability (kA) | 20 |
| The Most High Power Consumption (W) | 2.5 |
